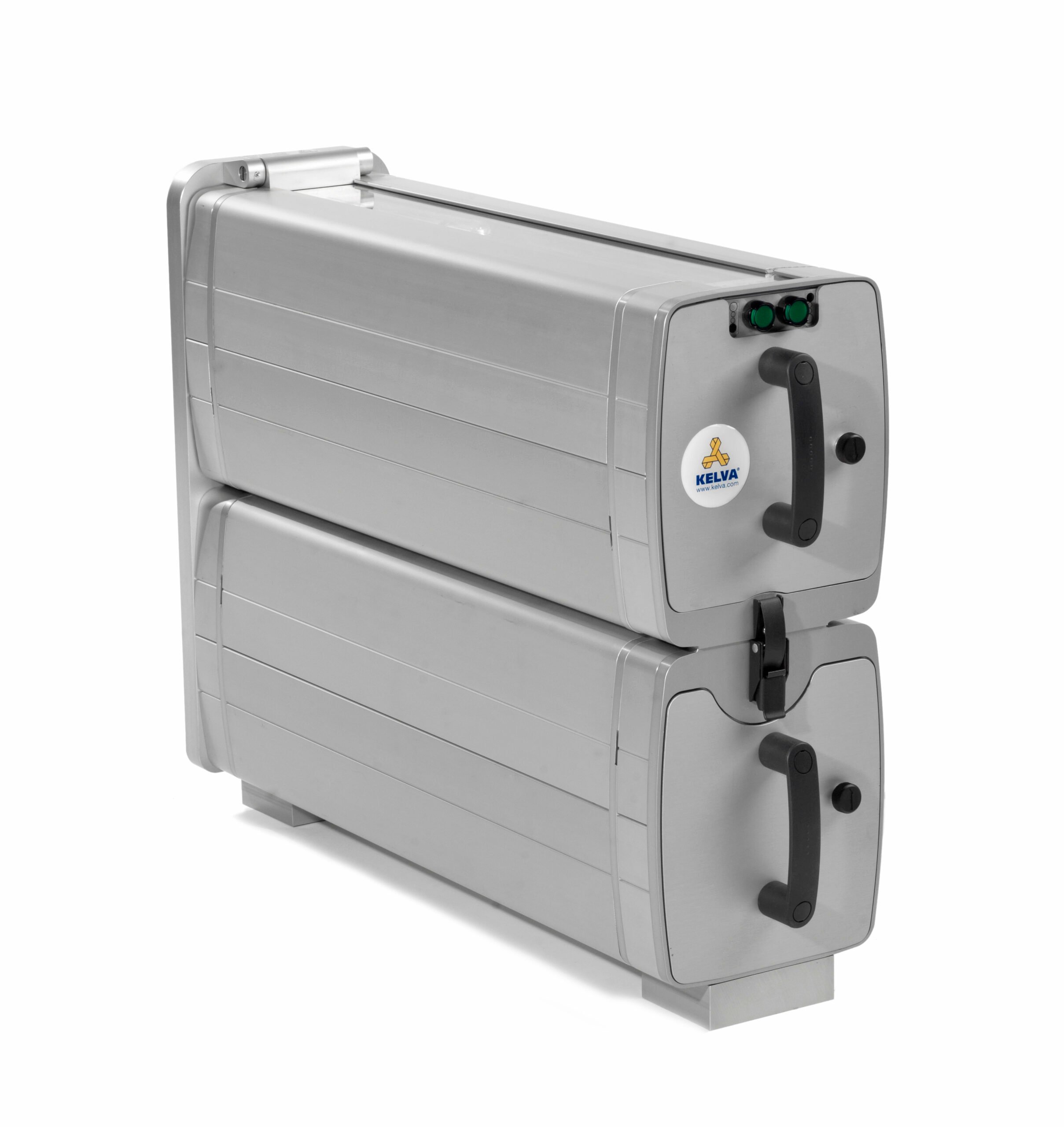

CWC Contact Cleaner

Efficient, durable and reliable. Mostly used for dust and debris removal from non-fibrous material webs

KELVA Contact Web Cleaner CWC, our standard label printing cleaner, is suitable for web speeds up to 250 m/min. It is available for single or double sided cleaning, and comes in sizes from 250 to 650 mm.

Contact us

The KELVA CWC contact web cleaning system uses a two-stage contact cleaning method. Specially formulated (ø50 mm) polymer roller(s) remove(s) contaminants from one side or both sides of the substrate as it passes through the cleaner. The particles are transferred to the second stage adhesive trap (adhesive roll). The clean web then passes through a static neutralization system to reduce the risk of recontamination. To allow easy purging, the adhesive roll are mounted on a carriage that can be pulled out to the side giving you quick clear access.

Replenishment of the adhesive can be done while the machine is running (no need to stop the machine). The top part of the CWC cleaner head also opens up to give access to the polymer rollers for cleaning and web threading. The KELVA CWC is featuring crocodile opening that allows easy access for web threading and maintenance. The adhesive roll pull-out enables continuous cleaning during change of adhesive layer, and a static discharger prevents the web from re-attracting dust after cleaning.

Highlights:

  • Reduces contamination up to 98%
  • The polymer roller stys in good contact with the web – even at low pressure
  • Available for single or double sided cleaning
  • Low-silicone polymer roller of different shore hardness available

Specifications:

  • Application: Web widths from 200 to 6500 mm – label printing, film and narrow webs, continous application
  • Max. web speed: 250 m/min
  • Power: 24 VDC 115/230V, 50/60 Hz for anti-static device
  • Pneumatic requirement: 5 bar required
  • Standard: Pull-out function for side access to the adhesive rollers, crocodile opening for continuous cleaning during change of adhesive roll
  • Operation: Integrated push buttons
  • Options: Double or single sided with counter roller

Typical applications

Printing

Web cleaning is a vital secret behind flawless print quality and a thriving printing business.

View

Packaging

Web cleaning is a key factor for making top-quality packaging and thus ensuring businesses can operate at their best level while guaranteeing the highest customer satisfaction.

View

Film + Foil

Special web cleaning solutions for eliminating dust and contaminants from fragile and highly static foil and thin-film surfaces.

View

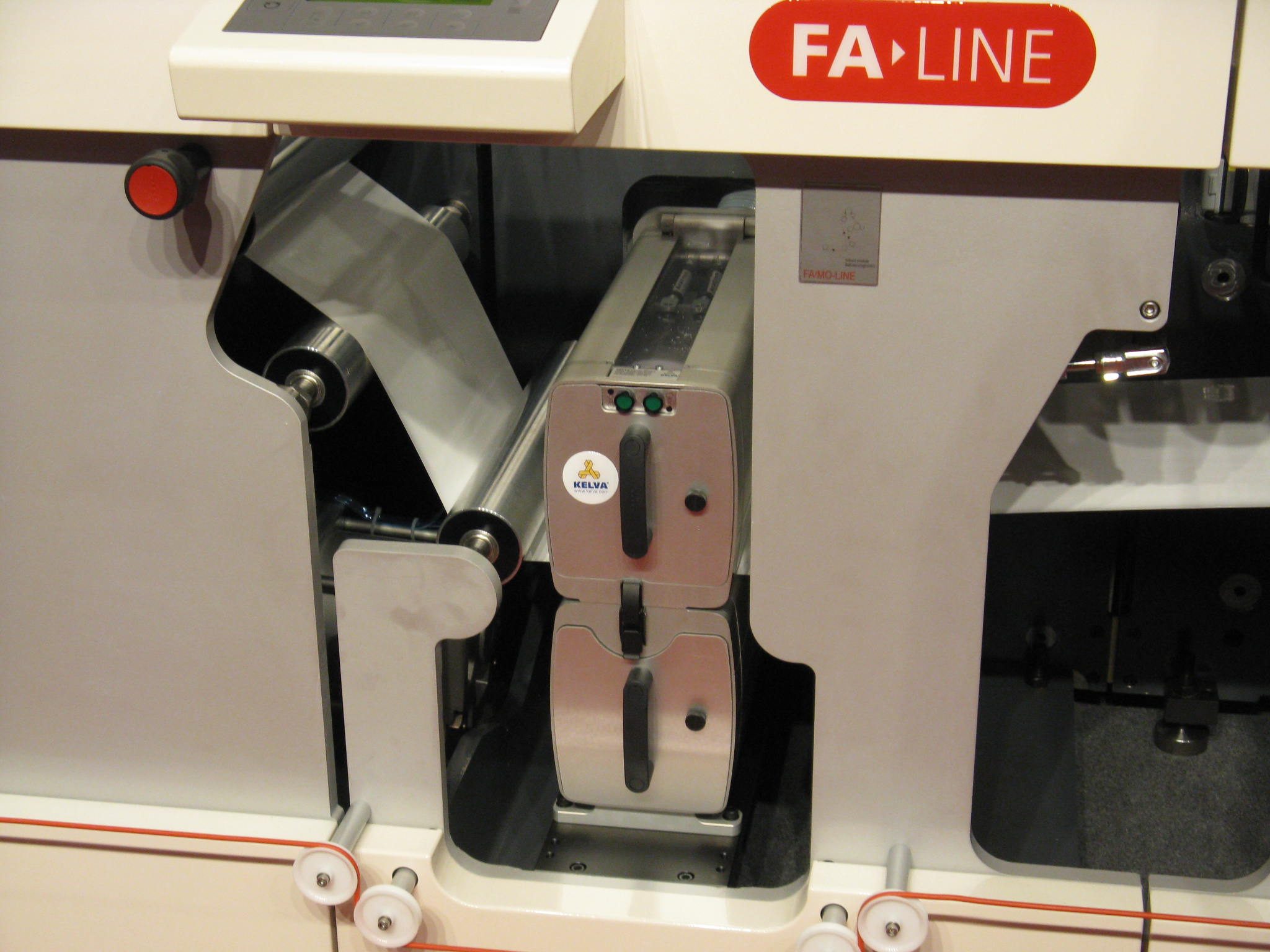

Installation examples

KELVA Adhesive rolls

Adhesive rolls from KELVA are specially formulated polymer rollers to remove contaminants from the substrate as it passes through the contact cleaner. They assure high quality contact cleaning. The KELVA adhesive rolls are easy to handle, and economic, as you take off the correct amount everytime. Available in standard and nonstandard widths, in sheeted, pre-cut rolls from stock.

Learn more
